Air Heaters

More Information

Air Heating products & solutions

convection heaters, finned rod elements



We manufacture custom designed process air-, gas- and convection heaters, air duct heaters, finned elements and also offer a wide range of standard air heaters and blowers.

Most of our heating solutions are employed in heating of air or other gases in ducts, autoclaves, or ovens for many industrial heat applications. For instance, our designs optimize the heating of air fed into combustion and prevent condensation.

Sheathed tubular, finned tubular, and finned strip elements consistently outperform gas, oil, and open coil electric units in both heating efficiency and safety.

View products! Browse our catalogues for standard air heaters commonly requested & add products of interest to your "enquiry list" or contact us to discuss your requirements.

Low to high temperature/ high flow rate heaters are available for Climatic Control, Drying, Curing, Baking, Processing, Preheating, Shrinking, and Thermoforming are frequent applications. our sensors and controls are available to provide single-source heating systems suited to your commercial heating application.

Heating Arrays

Heating Arrays, custom convection heaters for air & gases


Low to high temperature/ high flow rate heaters
are available for climatic control, drying, curing, baking, processing.

Elements are secured to the mounting plate by clinched bushes, allowing easy replacement of individual elements. A terminal cover protects the termination of the array. The array can be immersed directly into the duct.

For high temperature heaters, low wiring compartment temperature is ensured by a thermal insulation layer above the mounting plate and an additional air gap between the termination area, allowing natural convection to further cool the rods.






Finned Elements

Finned Elements


Finned elements are used where space is limited and high heat transfer rate is required.

We supply a wide range of finned rod and stripped elements - both standard as well as to customer specifications.














Hot Air Tools

Hot Air Tools


Our wide range of hand tools, air-heaters and blowers, deliver hot air at temperatures up to
900 °C.

All hot air tools are perfectly suited for either momentary use or continuous operation in machinery.

Rod Elements

Rod Elements


Rod elements
offer economic and robust heating for general purpose applications.

They can be bent to any suitable shape and are mounted in ovens (still air) or in ducts (forced convection).

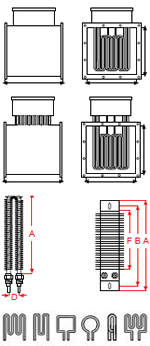

Typical Constructions

Air Heaters: Typical Constructions Low Temperature Duct Heaters High Temperature and high air flow heaters Finned Rod and Strip Elements Rod Elements for general purpose heating


Elements are available separately for use in OEM equipment. Special materials and custom designs are available for marine applications, power plants, or hazardous applications.


Specify your custom air heating requirements>>
