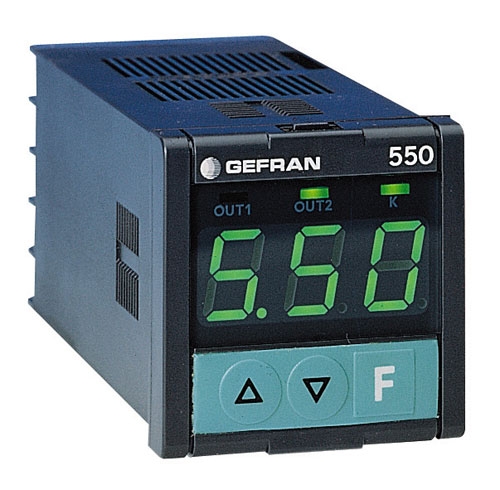

Gefran Quartz timer/ Counter 550
Stock Code:
product options
The catalogues of timers and counters are often packed with different models and versions: the 550 offers one model for every model.
Enquire
Description
By limiting the number of faceplate keys to those strictly necessary, there is a larger space for the display. The miniaturisation achieved with SMT reduces the dimension and increases the reliability. The microprocessor enables the required performance to be selcte by means of setting only three parameters by following the configuration described later.
Features:
- Input from mechanical contact or Open Collector
- Start/ Stop and Reset inputs from machanical contact or AC voltage
- Configurable as Timer or Counter
- Five time bases, 1msec resolution
- Five ranges of counter prescaler
- Quartz timer
Main applications:
- Timer
- Double timer
- Cyclic timer
- Counter
- Double counter
- Cyclic counter
- Revolution monitor
- Delay timer
Technical Data
| Inputs: | 2 inputs (IN1, IN2) with start/ stop or reset function of the timer or counter, and counter input for frequencies up to 100Hz. |
| IN1: | From voltage free contacts, open cellector (24Vdc/1mA) or in Vac (at the same voltage as the instrument supply) |
| IN2: | Available only if IN1 is not in VAC, for voltage free contact or open collector (24Vdc/1mA), active either when closed or when open. |
| Outputs: | |
| Relay: | 5A/250Vac at cosφ= 1 (3.5A at cosφ=0.4) Spark suppression on the NO contact |
| Power supply: | 110/220 Vac/dc ± 10% 120/240Vac ± 10% 24/48Vac ± 10% 24Vdc ± 10% 50/60Hz;5VA max. |
| Working temperature: | 0 to 50ºC |
