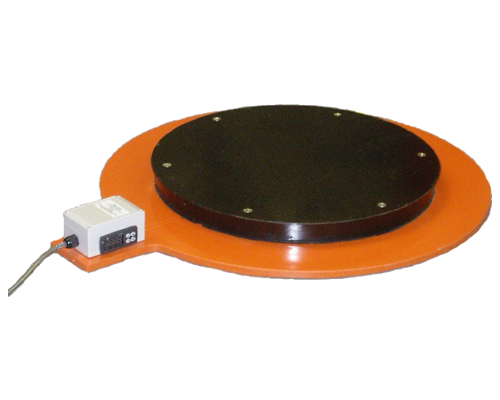

Digiheat Base Heater
Stock Code:
SKU: UHM-DIGI-BASE
  • Provides heat to the base of 210l and smaller containers
  • Can be combined with other drum heating products
    (i.e. Heating Jackets or Thermosafe Induction Drum Heater)
  • Specifically designed for melting or reducing the viscosity of soaps, fats, waxes, varnishes and oil based type of products.

The Digiheat Base Heater is suitable for heating steel or plastic drums up to 210 litres, including smaller containers. Top plate temperatures can be set and clearly displayed on the integral microprocessor temperature controller.

The Digiheat may be used by itself to provide heat to the base of a drum, alternatively it can be used in conjunction with flexible heating jackets or the Thermosafe induction drum heater to reduce heating times.

When using our Thermosafe® Induction Heater in a normal industrial area to melt a wax with poor thermal properties, the addition of a DigiHeat significantly reduces the time required. A reduction of 40% in the time taken for all the contents of a drum to reach 80C and be completely melted has been shown.

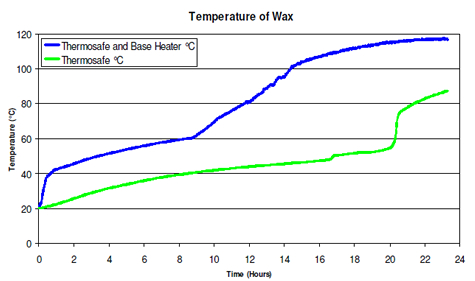

Digiheat Base Heater used with Thermosafe Drum HeaterTemperature of Wax (base of drum in centre)
  • Single phase, 240V, 50/ 60 Hz ac
  • Current/ power consumption: 3.5A/ 850W
  • Digital thermostat set points: 0 to 145┬░C
  • Heating plate diameter: 550mm
  • Overall width; 887mm
  • Heating plate height: 44mm
  • Weight: 19kg

Please ask for details of our Faratherm induction base heater if you require ATEX or IECEx certification!
