Displacement transducer, rectilinear, selfloading: PC
Stock Code:
product options

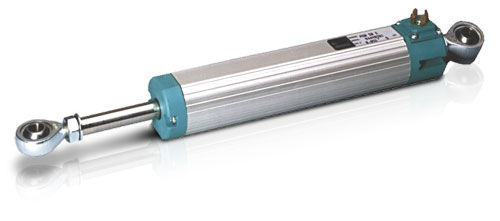

PC selfloading transducersare based on a cursor sliding along a resistive strip. Selfalligning linkage and ball-joints on either side permit angular displacement.

Enquire

Custom Product Options
Pick your custom options from the list below and click "Add To List".

Description

The measuring principle is that of a potentiometer.

  • Mechanical fixing and selfaligning linkage using 2 ball-joints
  • Maximum angular movement up to ± 30°
  • Independent linearity ± 0.05%
  • Repetibility 0.01 mm
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed up to 5 m/s
  • Working temperature: -30...+100°C

    • Technical Data

    Displacement speed

    ≤5m/s

    Working temperature -30...+100°C
    Tolerance on resistance ±20%
    Max. cursor current
         		10mA
    Max. applicable voltage 60V
    Electrical isolation >100MΩ at 500V=, 1bar, 2s

    PDF's

    Click here for more technical data
