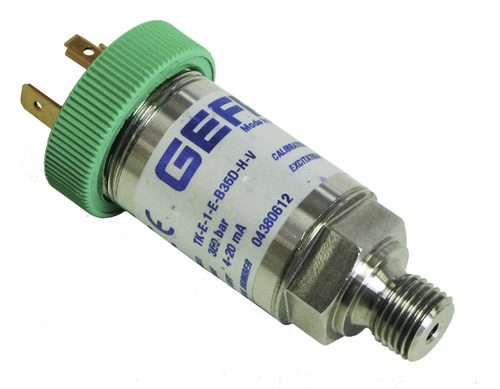

Pressure transmitter, general purpose: TK
Stock Code:
product options
TK transmitters are based on the thick film extensimetric.Thanks to highly stable electronic components, these transmitters can be used in applications requiring long-distance signal transmission or in smart control systems.
Enquire
Description
TK pressure transmitters are designed mainly measuring pressure in oil, air, and hydraulic circuits. They can also be used in the technical and process measurement fields.
Features:
- Ranges from: 0...3 to 0...500 bar and ranges from -1...+1 to -1...+10 bar
(0...50 psi to 0...7500 psi and -15...+15 psi to -15...+100 psi) - Output signal 4...20mA 2-wires / 0,1...5,1Vdc / 0,1...10,1Vdc / 0...5Vdc / 0...10Vdc / 1...5Vdc / 1...10Vdc
- Protection rating: IP65 / IP67
- Wetted parts: AISI 430F and 17-4 PH
- Available with a variety of process connections, both standard and custom
Technical Data
| Output signal | VOLTAGE | CURRENT |
| Measurement range | from 0...3 bar to 0...500 bar from -1...+1 bar to -1...+10 bar |
|
| Resolution | Infinite | |
| Pressure range | from 0...10 to 0...1000 bar / from 0...150 to 0...15000 psi | |
| Pressure Media | Fluid compatible with inox 17-4 PH/AISI 430F | |
| Body materials | Inox AIS 304, nylon 66F35VO | |
| Power supply | B/M/P/R 10...30Vdc C/N/Q 15...30Vdc |
10...30Vdc |
| Supply Sensitivity | <0.0015% FSO/V | |
| Output noise (RMS 10-400Hz) | <0.05% FSO | |
| Isolation resistance | >1000MΩ @ 50Vdc | |
| Max. current absorption | 13mA | 32mA |
| Long term stability | <0.2% FSO/ per year | |
| Operating temperature range(process) | -40...+105°C (-40...+221°F) | |
