Application: Pre-heating of wax for the printing & packaging industry
Solution: Time programmable wax bath heater with safety overflow switch for automatic filling.
The wax bath elements are completely sealed to prevent fire in case of spillage or overflow.
images
 Open wax bath designed to fit under printing roller. |
|

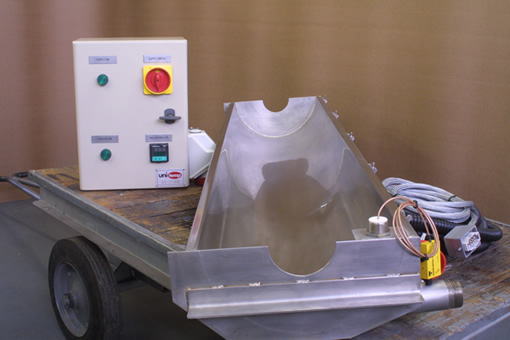

 Open wax bath with 3-phase control unit |
 Solid state relay driven for accurate temperature control |
client specifications
- Tank must be concave.
- Overall dimensions -radius of tank 215, length 1325mm
- Soft & even heat distribution is critical.
- Heating elements must be encapsulated that the flammable wax can not penetrate and cause a fire hazard.
unitemp solution
The wax bath was specially designed to fit snuggly under the printing roller which is immersed into the wax. A level switch keeps the wax at optimum fill level.
A 3-phase supply to the elements is accurately controlled via a Gefran 600 PID controller switching the elements rapidly via Gefran GTS solidstate relays (SSRs) keeping the wax continuously on the right temperature.
