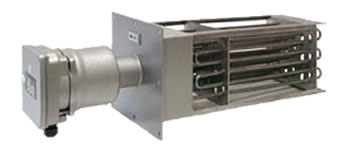

Air Heaters for insertion
Elmess: Air Heaters for insertion
Stock Code:
SKU: product options

With mounting flange as heating slide-in for air conditioning and ventilation devices or for heating up tool protection cabinets, ovens and heating chambers.

Custom Product Options
Pick your custom options from the list below and click "Add To List".
The heating coils with integrated electrical heating elements, flange frame or fixing plate as well as casing for electrical connections are laid out and assembled according to the customer's specifications and operating manual.

Materials are made of steel or stainless steel according to customer's instructions.

A higher thermal efficiency is attained using a specific surface load (pa), which is optimally adjusted to the operating conditions.

The temperature monitoring for protecting the heater and maintaining of the temperature classification is achieved using temperature sensors, which are located on the heating elements and electromechanical or electronic switches or monitoring devices. Usually flow monitoring is required for safe operation.

Typical applications:

  • Installation in plants with air-conditioning technology
  • Heating up incoming air or process gases
  • Use in ovens, heating or drying chambers
