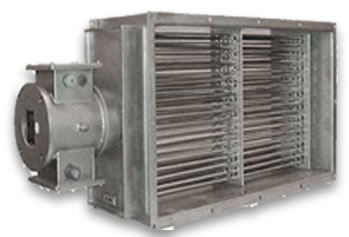

Electrical Duct Air Heater
Elmess: Duct Air Heater, electrical
Stock Code:
SKU: product options

With flange frame as part of the duct to be built into heating, ventilation and air conditioning systems.

The dimensions can be adjusted to the duct dimensions at hand.

Custom Product Options
Pick your custom options from the list below and click "Add To List".
Please indicate the flow rate
What is the medium to be heated?
Please indicate the required heating capacity
Please indicate the dimensions of the air duct the heater will be fitted to
Please indicate the location the heater will be installed at
Are there any other installation requirements?
The heating coils with integrated electrical heating elements, flange frame or fixing plate as well as casing for electrical connections are laid out and assembled according to the customer's specifications and operating manual.

Materials are made of steel or stainless steel according to customer's instructions.

A higher thermal efficiency is attained using a specific surface load (pa), which is optimally adjusted to the operating conditions.

The temperature monitoring for protecting the heater and maintaining of the temperature classification is achieved using temperature sensors, which are located on the heating elements and electromechanical or electronic switches or monitoring devices. Usually flow monitoring is required for safe operation.

Typical applications:

  • Installation in plants with air-conditioning technology
  • Heating up incoming air or process gases
  • Use in ovens, heating or drying chambers
