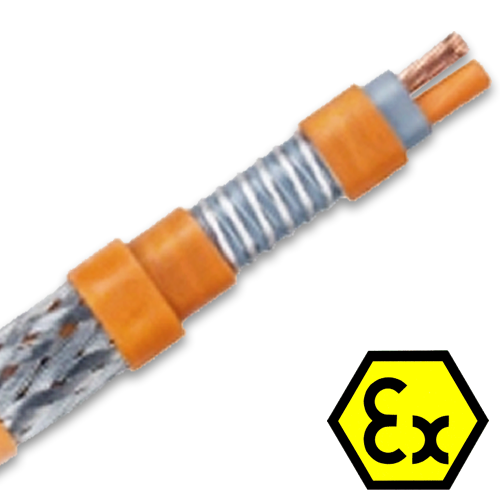

  • A low temperature parallel resistance constant watt heat tracing cable
  • Designed to provide frost heave protection of cryogenic storage vessels
  • Cut-to-length parallel circuitry for field fabrication
  • Fibreglass overlay
  • Nominal watt density: 16-33 W/m
  • Maximum Operating Voltage: 690 VAC
  • Certifications/ Approval:
    Thermon FP Foundation Heating Cable  - specifications

For a detailled quotation, please specify required W/m & quantity in metres, below.

Custom Product Options
Pick your custom options from the list below and click "Add To List".

Applications for Thermon FP parallel, Constant Watt Foundation Heating Cable

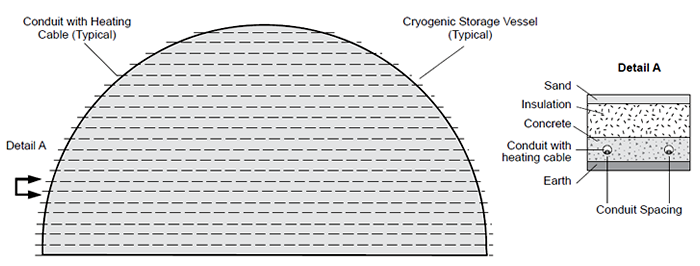

Thermon FP parallel resistance constant watt heating cables are designed to provide frost heave protection of cryogenic storage vessels.

With cut-to-length parallel circuitry, FP cables can be field fabricated, eliminating the need for specific circuit lengths to be provided for the application.

FP cable construction, with its unique fiberglass overlay, provides the needed cyclic reliability for foundation heating not found in other cables of this type. The fluoropolymer overjacket provides corrosion resistance, durability for installation in conduit, and lowers the friction factor for pulling. Because FP cables are not subject to the inrush current associated with self-regulating heating cables, the need for over sizing power distribution equipment is eliminated.

FP cables are certified for use in ordinary (nonclassified) areas and in potentially explosive atmospheres in accordance with the ATEX Directive and the IEC Ex Scheme.

Certifications/ Approvals

CE certificateII 2 G Ex e II T3 to T6, II 2 D Ex tD A21 IP66/IP67
T200°C to T85°C FM 07ATEX0016
International Electrotechnical CommissionInternational Electrotechnical Commission
IEC Certification Scheme for Explosive Atmospheres
FMG 06.0008
Factory Mutual ResearchFM Approvals
Ordinary and Hazardous (Classified) Locations
Underwriters LaboratoriesUnderwriters Laboratories Inc.
Hazardous (Classified) Locations

Thermon FP Foundation Heating Cable has additional hazardous area approvals including:

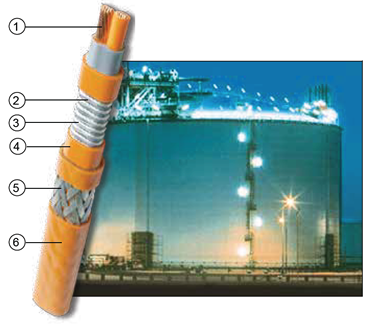

Thermon FP: Foundation Heating Cable, product specifications

  1. Nickel-plated copper bus wires 3.3 mm²
  2. Nichrome heating element
  3. Fiberglass overlay
  4. Fluoropolymer dielectric insulation
  5. Fluoropolymer dielectric Insulation.
  6. Fluoropolymer overjacket


  • Nominal watt density: 16-33 W/m
  • Maximum operating voltage¹: 690 Vac
  • Minimum installation temperature: -60°C
  • Minimum bend radius
    @ -15°C: 10 mm
    @ -60°C: 19 mm
  • Pull strength: 500N
  • Friction coefficient: 0.25-0.35
  • Weight: 0.181 kg/m


¹The 690 Vac maximum operating voltage applies to IEC Ex only. Max operating voltage for all other certifications is 575 Vac.

Conventional Foundation Heating System

Foundation Heating System by Thermon

Power Output¹

The rated power output of FP cables for voltages typically used in foundation heating is shown in the Table below. The heating zone length is the distance between bus wire connections.

FP 8-223024102
FP 8-440018152
FP 10-22303076
FP 10-440023137

Circuit Breaker Sizing and Circuit Length

Maximum current draws based on start-up temperatures are shown below.

Circuit breaker sizing should be based on local regulations. Ground-fault protection of equipment should be provided for each branch circuit supplying electric heating equipment.

Circuit Length
FP 8-22301850.115
FP 8-44003500.050
FP 10-22301550.132
FP 10-44003100.058


¹Circuit length is dependent on capacity of the circuit breaker. Contact us for design assistance.

Power & End Termination Kit

Thermon Power & end termination kit: FHT1-F-10

FHT1-F-10 contains components to fabricate 10 power connections and 10 end terminations for FP foundation heating cable. (Components for a single circuit shown.)

Kit includes:

  • (10) Ring terminals
  • (10) ET End caps
  • (10) TBX Power connection boots
  • (10) 3'' (76 mm) Polyolefin shrink tubes
  • (10) 4-3/4'' (121 mm) Polyolefin shrink tubes
  • (1) Rolls of Teflon® tape
  • (3) Rolls of mastic tape
  • (10) RTV silicone tubes

Temperature Control

From both energy saving and operational standpoints, the heating system should include an effective and versatile temperature control system. Contact us for recommendations.
