Thermon SafeTrace DLS-IT: Steam Tracer
Stock Code:
SKU: product options

SafeTrace DLS-IT is a metallic tracer tube covered with composite materials that lower thermal conductance to reduce heat output and temperature.

DLS-IT Cross Section

Typical DLS-IT Cross Section

Tracer attached to pipe with
PF-1B tape

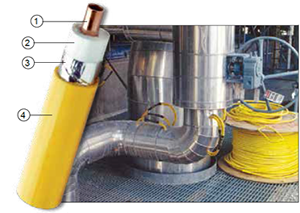

Thermon SafeTrace DLS Product Specifications

  1. Copper or stainless steel tube
  2. Thermal retardant
  3. Heat reflective tape
  4. Safety yellow polymer jacket


Thermon SafeTrace DLS-IT: Steam Tracers

SafeTrace provides a reduced yet predictable heat output along a traced pipe while preventing hot spots and overheating.
It replaces bare metallic tracers that waste energy and stress pipe works by raising pipe temperatures much higher than desired.

SafeTrace DLS-IT tracers utilize a safety yellow identification jacket to signify materials inherently dangerous such as steam per ASME/ANSI A13.1-1996. All SafeTrace IT tracers also comply with ASTM Std C-1055, which requires that human skin temperature be less than 136.4°F (58°C) when in contact with a hot surface for five seconds.

Typical Steam Tracing System using DLS-IT Tracers:

 Thermon Steam Tracing Systems using DLS-IT SafeTrace

  • Signifcantly reduces risk of burns
  • Saves up to 50% of steam consumption compared to bare metal tube
  • Predictable heat transfer—no hot spots or overheating
  • Lower cost of ownership—can be run continuously from the steam supply to the condensate collection system
  • Simple tape-on installation
  • Quick delivery
  • Free design assistance

Available tube diameters

3/8" and 10 mm
Nominal O.D1" (25 mm)
Available tube materialscopper & stainless steel
Typical pipe temperature range5°C to 54°C
Max. exposure temperature215°C
Min. installation temperature-40°C
Max. recommended steam pressure17 bar
Skin contact temperature58°C
