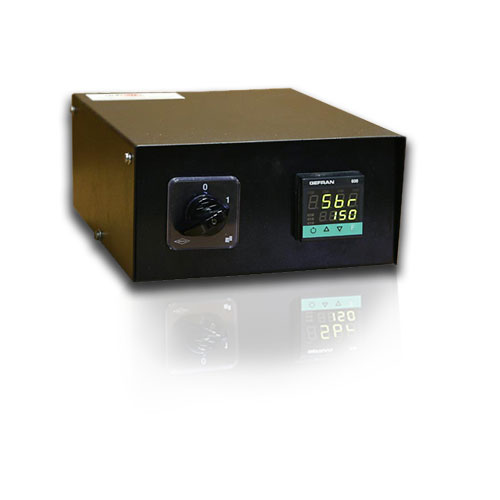

Thermon UniCon600: Single Zone Hot Runner Control System
Stock Code:
SKU: product options
The Unicon600 single zone control unit is ideally suited for controlling temperature of heating systems up to 2300 Watts, 230Vac (single phase).
This stand alone unit comprises a PID controller, ON/OFF switch, solidstate relay and protective fuse in a sturdy metal enclosure.
Features:
- softstart - user programmable, superior exponential algorithm, variable time allows sufficient drying time to lengthen element life.
- manual operation - can be switched to manual control should a thermocouple fail, automatic switchover can be pre-programmed
- connector plug is fitted to the rear of the enclosure (5 pin female connector for element and sensor wires).
- PID temperature control switching up to 10A
- Solid state relay switching with ultra rapid fuse and snubber circuit protection
- Self-tuning with power limitation for determination of optimal PID parameters.
- Manual / Automatic control.
Size | 247mm w x 197mm d x 99mm h |
Per Zone | 10A, 2.3kW per channel |
| Total rating/ power requirements: | 1-phase, 230V / 10A with neutral (2.3kW max.) |
| Other specifications: | Ambient temperature 50°C max. |
