Flanged Immersion Heater, flameproof, Ex-d

Stock Code:

SKU: custom-flange-heater

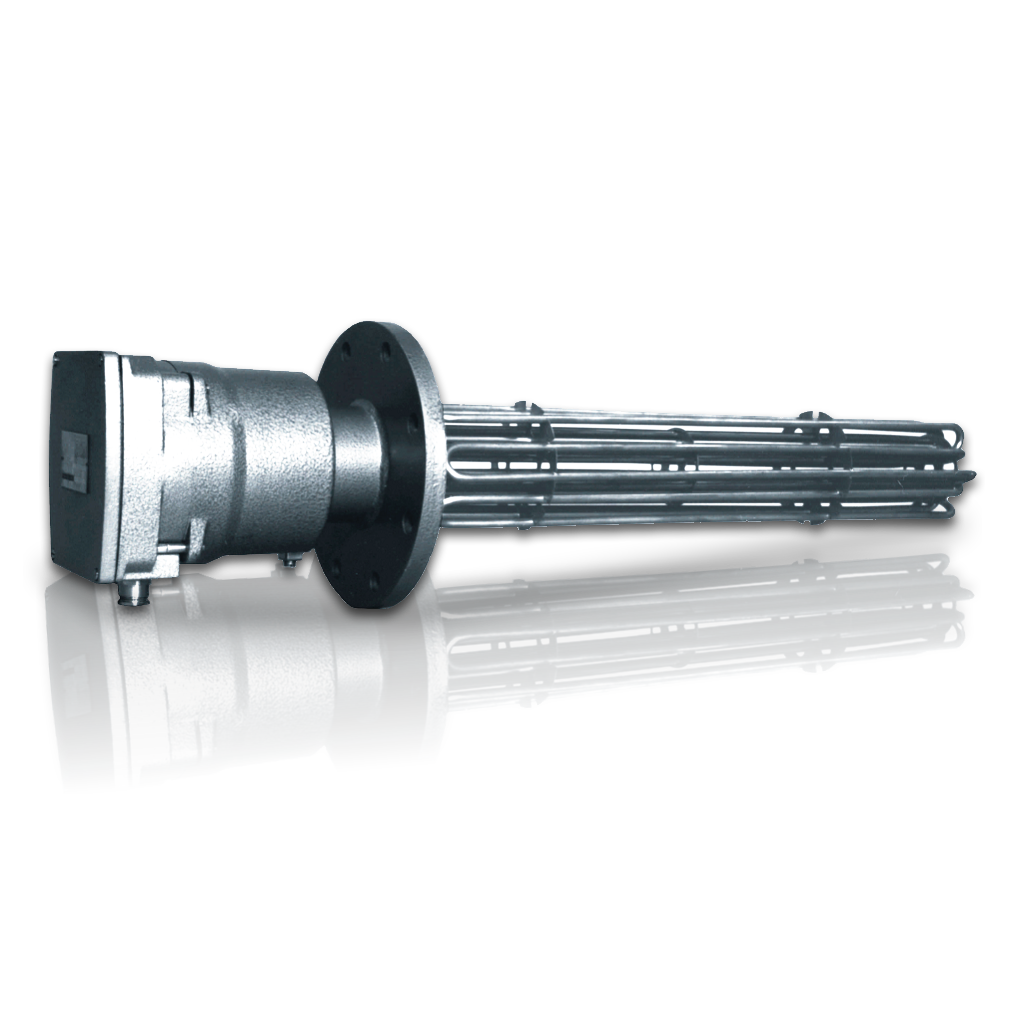

Ex-d Flanged Heater to Customer Specification ATEX 'd' Immersion heater with sheathed elements on flange

ATEX II 2 G - EEx d II C T1 to T6 certified immersion heaters
Stand off cast housing
Flange size customised to suit client specifications
High quality alloy sheathed elements
Watts density to suit process
Feasible output up to 1.5 MW
Certified to Ex-d requirements

Enquire
