Screw Plug Immersion Heaters, light weight oils
Stock Code:
SKU: product options

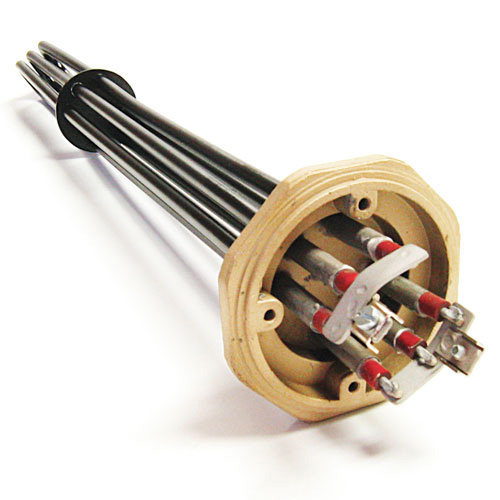

Screw-in immersion heaters for light weight oils are made of moderate watts density rods (3.2 Watts/cm²) to prevent degradation of oil and the formation of carbon deposits on the elements.
2" Brass fitting.
Notes:
*To view images of termination options, click on the magnifying glass icon in the options column header.Since the elements are fully immersed, virtually 100% energy efficiency is achieved. Special elementsare available for heating of corrosive solutions, highlz viscous oils, high pressure or hazardous areas. Typically a number of U-shaped heating rods are welded to a threaded boss or a flange. The terminations are usually covered by a termination housing.
Design criteria:
Medium:
Oil, sugar based liquids and other solutions may degrade if subjected to a high element temperature. This can also lead to carbon build-up on the element, hindering heat transfer and eventually causing element failure. For these liquids a low watts density is advosable.
Flammable substances:
Fuels, oil and generally combustible substances must be heated with care. The element temperature and the operating temperature of the system must be maintained below the flashpoint to prevent fire or explosion. Ex-rated elements are therefore specially designed and equipped with a thermostat to limit element temperature. In addition, approved temperature- and pressure control equipment must be used.
| Immersion Length (mm) | 340 | 620 | 980 | 1200 |
| Rating (Watts) | 3x500 | 3x1000 | 3x1500 | 3x2000 |
| Power Supply (Volt) | 230/400 3ph | |||
| Fitting | 2"Brass | |||
