This controller is suited to a wide variety of rate monitoring and batching applications. It is also ideal for length cutting and multi-channel coupling.
- 5 buttons
- 13mm LED display, 6 digits
- 6 setpoint indicator LED's (R4, R4A, R4S & R4AS only)
- IP65 Panel mount case
(H x W x D) 48 x 96 x 119.5mm

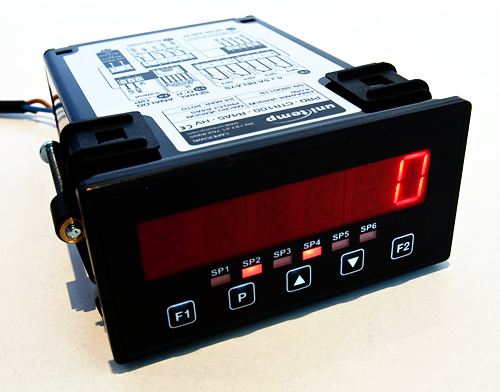

The PRO-CTR100 controller is the ideal solution for a variety of counting and rate application requirements. This controller has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-bystep through the setup process.
The front panel includes a 6-digit LED display and five front-panel buttons, for simple operator interface. One of the five buttons is userprogrammable, so you can customise it as a shortcut to your most frequently used feature.
The PRO-CTR100 can be customised to include a serial port (RS232/RS485) and an analog output. Up to four relay outputs can also be added.
Input signal | 0-24V DC, 0-30V AC |
| Sensor types | Quad (x1, x2, x4), NPN, PNP, TTL |
| Excitation | 24/5V DC (50/200mA max) |
| Noise filtering | 20kHz, off |
| Pulse width | Must be > 5?s |
- Optional - | |
| Relay outputs | 4 x 5A form A |
| Analog output | Isolated 16-bit 4-20 mA or 0-10V output |
| Serial port | Isolated RS232/485 |
| RATE | |
| Input frequency | 20kHz max |
| Sampling rate | 100msec |
| Resolution | 0.01Hz |
| Accuracy | 0.005% |
| Temp drift | Typically 2ppm/°C |
| COUNTER | |
| Input frequency | 10kHz (Quad x4, A, B), 20kHz (Quad x1, x2), 38kHz (C) |
| Sampling rate | 10msec |
