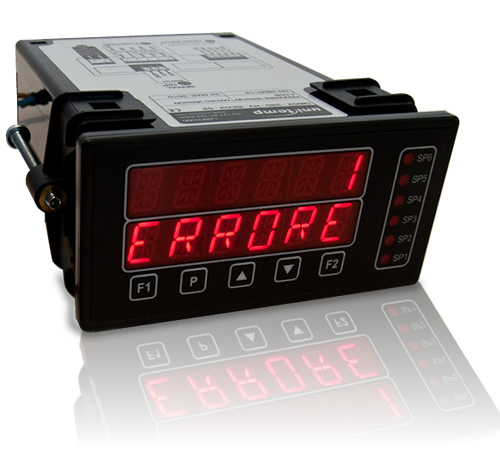

Define Instruments PRO-CTR200: Counter, Rate Batching Controller
Stock Code:
SKU: product options

This controller is suited to a wide variety of rate monitoring and batching applications. It is also ideal for length cutting and multi-channel coupling. The dual display allows simultaneous viewing of count and rate.

  • 5 buttons
  • 2 x 10mm, 6-digit LED display
  • 6 setpoint indicator LED’s
    (R4, R4A, R4S & R4AS only)
  • IP65 dust and splash-proof
  • Panel mount case
    (H x W x D) 8 x 96 x 119.5mm
Custom Product Options
Pick your custom options from the list below and click "Add To List".

CTR200The PRO-CTR200 controller is the ideal solution for a variety of counting and rate application requirements. This controller has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-bystep through the setup process.

The front panel includes a dual 6-digit LED display and five front-panel buttons, for simple operator interface. One of the five buttons is userprogrammable, so you can customise it as a shortcut to your most frequently used feature.

The PRO-CTR200 can be customised to include a serial port (RS232/RS485) and an analog output. Up to four relay outputs can also be added.

Input signal

0-24V DC, 0-30V AC

Sensor typesQuad (x1, x2, x4), NPN, PNP, TTL
Excitation24/5V DC (50/200mA max)
Noise filtering20kHz, off
Pulse widthMust be > 5?s
- Optional -
Relay outputs4 x 5A form A
Analog outputIsolated 16-bit 4-20 mA or 0-10V output
Serial portIsolated RS232/485
Input frequency20kHz max
Sampling rate100msec
Temp driftTypically 2ppm/°C
Input frequency10kHz (Quad x4, A, B),
20kHz (Quad x1, x2),
38kHz (C)
Sampling rate10msec
