This sophisticated controller comes factory pre-calibrated to suit either a 4-wire or a 6-wire strain gauge input, and is designed specifically for weighing applications.
- 5 buttons
- 13mm LED display, 6 digits
- 4 setpoint indicator LED’s and one NET indicator LED
(R4, R4A, R4S & R4AS only) - IP65 dust and splash-proof
- Panel mount case - (H x W x D)
48 x 96 x 119.5mm
Texmate controllers interface smoothly with a wide range of PLC and monitoring systems. These sophisticated instruments are designed to relieve the PLC of processing overhead, reduce costs and extend the capability of the total system.

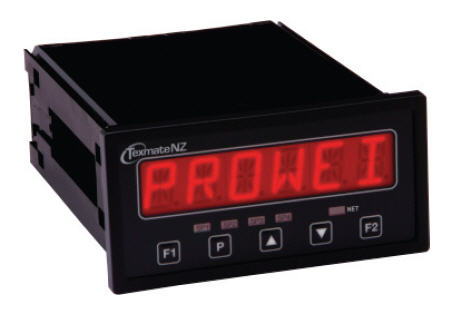

The PRO - WEI100 is straightforward to use, and has a buil-tin alphanumeric LED display and five front-panel buttons.
Designed specifically for use in weighing applications, the PRO - WEI100 comes factory pre-calibrated to suit either a 4-wire or a 6-wire strain gauge input. Setup (or re-calibration) is simple, with on-screen, step-by-step instructions.
The PRO - WEI100 can be customised to include a serial port (RS232/RS485) and an analog output. Up to four relay outputs can also be added.
Input signal | 4/6-wire strain gauge, 1-5mV/V |
| Excitation | 5V DC, supplied by controller (powers up to 8 x 350? loadcells) |
| Sampling rate | Up to 50Hz |
| Resolution | 18-bit |
| Accuracy | 0.005% of reading |
| Temp. drift | Typically 3ppm/°C |
- Optional - | |
| Relay outputs | 4 x 5A form A |
| Analog output | Isolated 16-bit 4-20 mA or 0-10V output |
| Serial port | Isolated RS232/485 |
