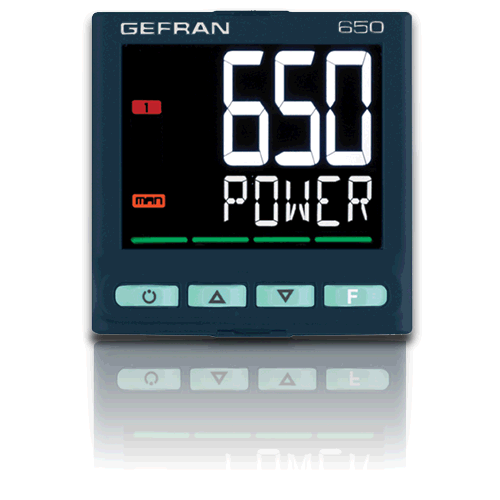

Single loop 1/16 DIN controller
650/1250/1250 series
- With automatic tuning algorithms to control heating, cooling, and combinations of the two
- Customizable display - set point programmer - logic control function block
Notes:
LV = 20...27 VAC/DC power supplyMain applications of the Gefran 450 controller:
- Packaging machines
- Packing machines
- Labelers
- Food processing lines & machines
- Laboratory machines and ovens
- Electrical heaters for industrial heating

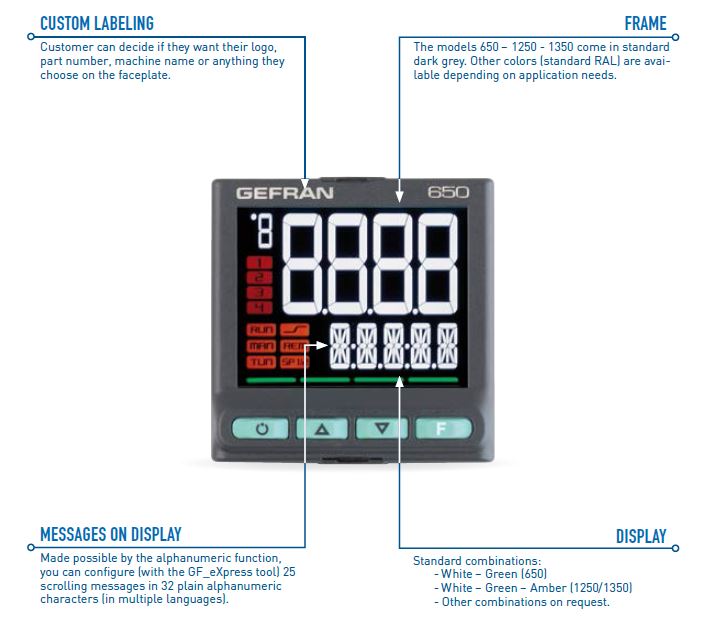

Flex-view display
The information on the display (colors, messages, alarms, help in line) can be customized, making the HMI more efficient:
Operator messages are configurable. They can be activated by numerous process events, such as: alarm limits attributed to the main variable, to the setpoint, to the remote setpoint, to reading of load currents; from digital inputs, from Function Block outputs.
The colour combination on the display can be customized. Model 650: the standard colors of the PV-SV displays are White-Green. A different color combination can be evaluated on request.
Help in Line messages for product configuration (English)
Maximum clarity of system diagnostics messages (English)
Colour of the device frame can be customized

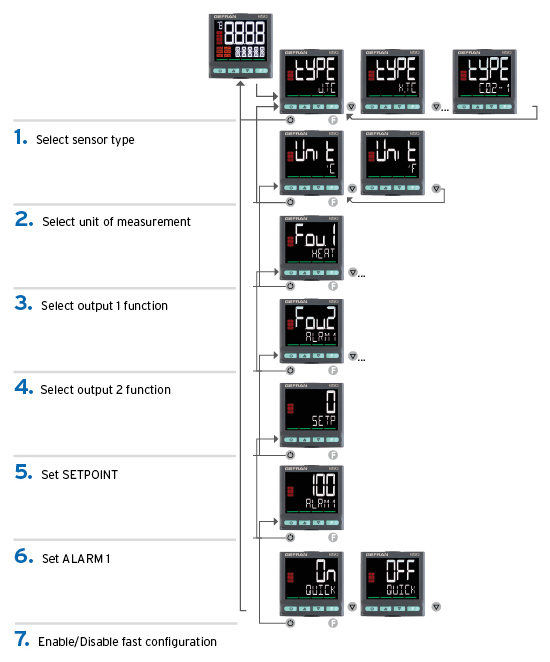

Easy setup
Controllers are configurable from the faceplate in very few steps
Configuration with GF Express (from PC) even with the controller off
Configuration with portable configurator (Zapper)
Can be done by non-experts! Saves time in multiple setup of controllers with the same configuration.
Logic control block
With 16 Function Blocks (AND – OR – NOT – TIMER), you can develop (program) applications and assign external events (logic inputs) with events or internal states to the PID control function (alarms, setpoint state, etc.). This simplifies the control system by integrating multiple HW components in a single device. It also maintains the advantages of single-loop PID control.
Setpoint Programmer Block
Valve Positioner Block
PID parameters control
Monitoring of energy consumption & preventive maintenance
Energy Monitor lets you display, totalize, and save energy consumption (for example, KWh) of a single device or of a single heating zone.
Maintenance Minder prevents system downtimes and production losses
| HW characteristics | |
| Operator interface: | Double white-green LCD display |
| Universal main input: | TC, RTD, mA, V |
| Sampling time: | 60ms / 120 ms, selectable |
| No. digital inputs: | max. 3 |
| No. analogue inputs: | 1 Main + 1 SPR + 2TA |
| No. relay outputs: | max. 4 |
| No. logic outputs: | max. 2 |
| No. analogue outputs: | max. 2 (isolated) |
| Serial communication: | RS485 Modbus |
| Mechanical dimensions: | 1/16 DIN depth 80mm |
| Installation: | On panel, removable faceplate |
Gefran 650 | 1250 | 1350 PID Controllers: The friendliest controllers in the world (video)
- 1/16th DIN | 1/8th DIN flex-view display, fast and easy setup
- Setpoint programmer, preventative maintenance & energy monitor.
- Easy custom branding for OEM customers: Special logos and custom case colours.
- Up to 25 customisable plain language alpha/ numeric scrolling messages.
Many languages to choose from. Over 300 preprogrammed scrolling messages. - Clear and easy to read: Gefran 650 has a 2 coloured text display in white & green, Gefran 1250 features a 3 coloured text (white, green & amber) + other combinations are available on request.
- Intuitive: Real push buttons with both tactile feedback as well as visual indication of button being pressed.
The green LEDs correspond to the four keys for user guidance. The displays are bright & easy to read - even in low light conditions. - Luminosity: Easy to set for best visibility in the workspace & to extend the display's lifecycle.
