Define Instruments LD-RTD: Temperature Indicator

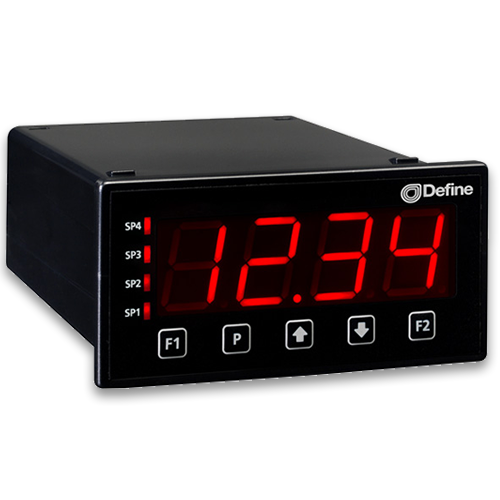

Define Instruments LD-RTD Temperature Indicator

Stock Code:

SKU: product options

This general purpose, high accuracy temperature indicator has been designed specifically for RTD probes, and is ideal for a variety of indication and alarm control temperature applications.

5 buttons. 4 setpoint indicator LED's (R4 & R4A only)
20mm LED display, 4 digits
P65 dust and splash-proof
Panel mount case - (H x W x D)
48 x 96 x 119.5mm

Enquire
Description
Technical Data
Downloads
Related Products
Tags

LD-RTD RTD Temperature controller The LD-RTD can be used either by itself or as a PLC interface, and comes with a large display that's easy to read - even at a distance. Accuracy is ensured with high resolution analog input and output modules.

There are 3 output variations, allowing you the flexibility of choosing the option that best suits your application requirements:

LD-RTD-I: Indicator only
LD-RTD-R4: Controller with 4 relays & 4 set-points
LD-RTD-R4A: Controller with 4 relays, 4 set-points & 1 analog output

Sensor types	2-wire, 3-wire, 4-wire RTD (PT100, PT1000)
Sampling rate	2.5Hz
Resolution	16-bit
Accuracy	0.05% of reading
Temp drift	Typically 50ppm/°C
Optional
Relay outputs	4 x 5A form A
Analog output	Isolated 16-bit 4-20 mA or 0-10V output

Define LD-RTC/-TC Temperature Indicator: Manual

339 KB

Define LD-RTD Temperature Indicator: Data Sheet

125 KB

	Name
	Define Instruments LD-TC thermocouple temperature indicator	Custom Product Options Pick your custom options from the list below and click "Add To List". Options: Power Supply: Quantity: *
	Define Instruments LD-RTD Temperature Indicator	Custom Product Options Pick your custom options from the list below and click "Add To List". Options: Power Supply: Quantity: *
	Define Instruments LD-PRC: Process Indicator, Controller	Custom Product Options Pick your custom options from the list below and click "Add To List". Options: Power Supply: Quantity: *
	Define Instruments SD-50X: Indicator, Controller, panel-mount, loop powered	Quantity: *
$Define Instruments TEX-BAR: Process Controller, bar graph$	Define Instruments TEX-BAR: Process Controller, bar graph	Custom Product Options Pick your custom options from the list below and click "Add To List". Options: Power Supply: Quantity: *

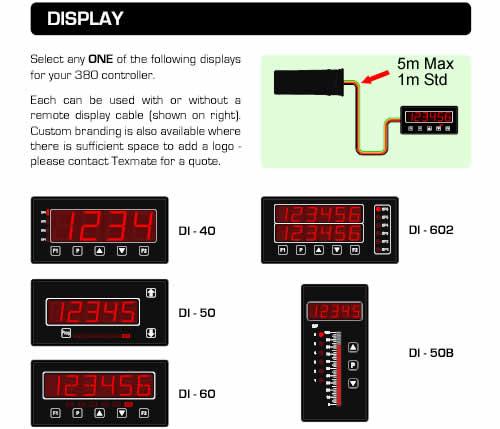

	Define Instruments 320/380: Controller, Indicator, panel-mount	Custom Product Options Pick your custom options from the list below and click "Add To List". Case: Power Supply: Input: Output: Display (Horizontal and Vertical): Memory: Quantity: *

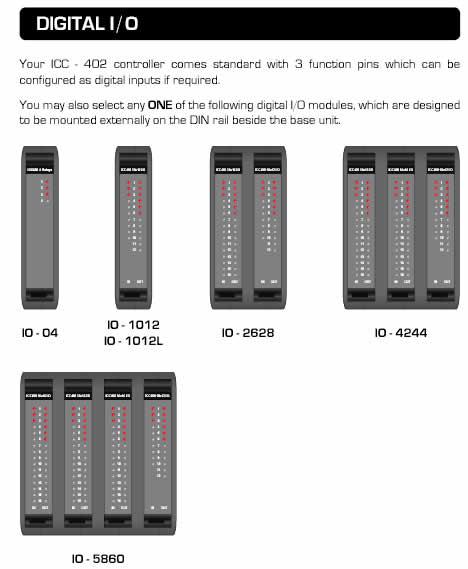

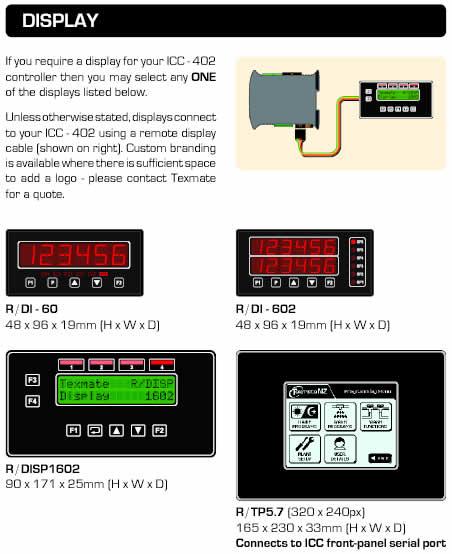

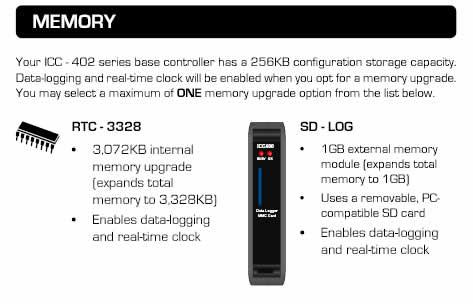

	Define Instruments ICC-402 controller/ logger, programmable, DIN-rail	Custom Product Options Pick your custom options from the list below and click "Add To List". Power Supply: Analog input (1): Analog input (2): Analog input (3): Analog output: Serial output: Memory upgrade: 402 Display: Digital I/O: Quantity: *
