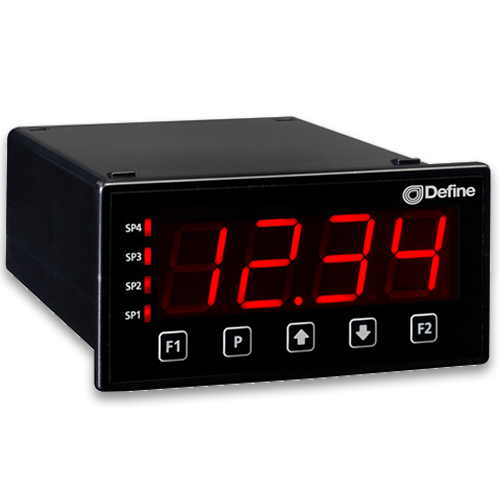

Define Instruments LD-TC thermocouple temperature indicator
Stock Code:
SKU: product options
This universal temperature controller is suitable for all common thermocouple probe types (B-type, J-type, K-type, N-type, R-type, S-type or T-type TC sensors), and is ideal for indication and alarm control temperature applications.
- 5 buttons. 4 setpoint indicator LED's (R4 & R4A only)
- 20mm LED display, 4 digits
- P65 dust and splash-proof
- Panel mount case - (H x W x D)
48 x 96 x 119.5mm
The LD-TC can be used either by itself or as a PLC interface, and comes with a large display that's easy to read - even at a distance. Accuracy is ensured with high resolution analog input and output modules.
There are 3 output variations, allowing you the flexibility of choosing the option that best suits your application requirements:
- LD-TC-I: Indicator only
- LD-TC-R4: Controller with 4 relays & 4 set-points
- LD-TC-R4A: Controller with 4 relays, 4 set-points & an analog output
| Sensor types | Thermocouple B, J, K, N, R, S, T type |
| Sampling rate | 2.5Hz |
| Resolution | 16-bit |
| Accuracy | 0.05% of reading |
| Temp drift | Typically 50ppm/°C |
| Optional | |
| Relay outputs | 4 x 5A form A |
| Analog output | Isolated 16-bit 4-20 mA or 0-10V output |
