Gefran 40T-96 Indicator with Alarm

Gefran 40T indicators offer exceptional versatility due to the wide selection of sensor input options, functions and hardware configuration. Input type, alarm types and the function of the keys on the faceplate are software selectable. Retransmission output and digital communication facilitate easy interface with supervisory systems and SCADA applications.The large display makes the digits legible at considerable distance.
Input configuration is software selectable. For other indicators choose from:

• 40A series: 20mAac, 50mAac 200mAac, 1Aac, 5Aac, 2Vac, 20Vac, 200Vac, 500Vac
• 40B series: strain gauge (autoranging between 1.5 to 3.3mV/V), Potentiometer
• 40F series: Frequency, inductive, capacitive (Namur, 2/3 wire), encoder, mircorswitch, 30-500Vac

Features:

• Choose from a wide range of software selectable inputs.
• Connect your input device (4-20mA transmitter, loadcell…) directly the 24V/10V on-board supply.
• Reset maximum/minimum register or "zero" the input via keys on the faceplate.
• Trigger pre-configured functions via remote switch.
• Use the "flash" function to read product and freeze during gaps on continuous production lines.
• For system testing during commissioning use the keys on the faceplate to activate the alarm outputs.

Description

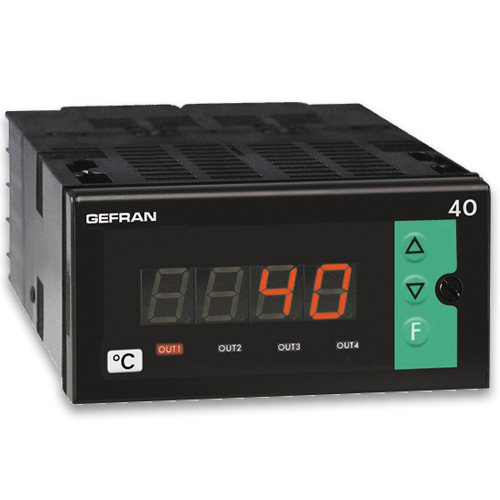

Microprocessor based indicator in both 96x48 (1/8 DIN) format manufactured with SMT. The instrument have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 3 / 4 digit display format, and 3 indicating LED's for the output statuses. The input signal can be selected from a wide range of sensors:

• Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J (japanese standard) 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys. The instrument is available in version base, with two outputs to relé (2R), and expandible version. The instruments have a maximum of 4 outputs that can be mechanical relays (5A,250Vac/30Vdc cos?=1) or logic outputs (0 to 11Vdc). A digital input (24Vdc/5mA) is available (for resetting, hold, flash, peak handling or releasing latch) and one output of 0...10V, 0/4 to 20mA (max. 500) is available for retranmitting the measured input signal.

The retransmission output, the digital input and the third output are available contemporaneously. The serial communication option (available in RS485 standard) allows connection to supervision systems and PLCs with two protocols: GEFRAN CENCAL and MODBUS RTU.

Finally, a triac can be fitted (as an alternative to the output 1) to drive resistive loads up to a maximum of 1A at 240V. The programming of the instrument is made easy by grouping the parameters in function blocks (CFG for the alarm hysteresis, Inp for the inputs, Out for the outputs...) and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under Windows . A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.
