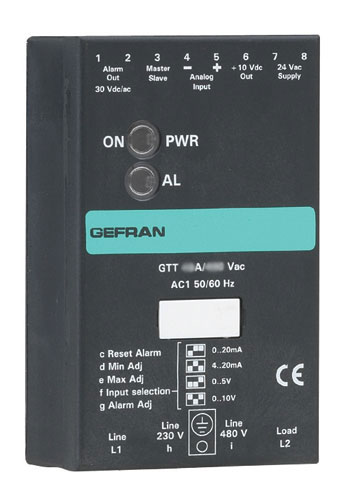

Gefran GT: SSR, monophase, w/o heatsink
Stock Code:
SKU: product options
GT Solidstate relays without heatsinks (replacement part for GTT)
Solid state switching devices are used in most modern automation systems to switch electrical loads.
They offer high durability where a high number of switching operations or a fast switching speed is required. Further benefits are resistance to mechanical shock or vibration, moisture and dust as well as silent operation, maintenance free service and reduction of electromagnicetic noise.
Features:
- Command input from analogue voltage or current signal or potentiometer
- Switching at voltage zero crossing
- Partialization on wave train power with dynamically optimized time cycle
- Antiparallel double SCR
- 2 led for supply indication, "ON" state, 1 optional LED for load interrupt alarm
- 4000V isolated between input circuit and power output
- MOV (varistor)
- Optional monitoring of interrupted load
| Sensor Inputs: | |
| Types: | |
| 0/4-20mA control signal, 0-10V, potentiometer | x |
| Power inhibit inout | x |
| Control signal in Vdc | |
| Vdc double control signal | |
| Outputs: | |
| Rated load current | |
| 6A | |
| 10A | |
| 25A | x |
| 40A | x |
| 50A | x |
| 55A | |
| 60A | x |
| 75A | x |
| 90A | x |
| 120A | x |
| Rated voltage | |
| 400Vac | |
| 480Vac | x |
| 600Vac | |
| Mounting, Protections | |
| Mounting on DIN rail (included) | |
| Panel mounting (with 2 screws) | x |
| Panel mounting (with 4 screws) | |
| IP 20 protection with removable front panel | x |
| Internal overvoltage protection | x |
| Diagnostics, Alarm | |
| "ON" LED signal | x |
| Diagnostics for partial and total load interrupt (HB) with internal CT, LED | x (optional) |
| Diagnostics for overtemperature with LED | x |
| Diagnostics for overtemperature with LED and alarm output |
