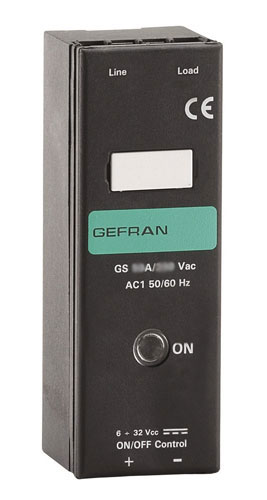

Gefran GS: Solid State Relay, logic input, no heatsink

Gefran GS: SSR, logic input, no heatsink

Stock Code:

SKU: product options

GS Solidstate relays without heatsinks (replacement part of GTS)

Zero crossing relay with antiparallel thyristor outputs is the most used solid state relay in industrial applications.

5--32VDC

Enquire
Description
Technical Data
Downloads
Accessories
Related Products
Tags

Notes:

"Zero crossing" relay is engergised when voltage meets the zero point and disenergides when current meets the zero point, depending on the signal control on the input circuit. For applications with merely resistive loads, "T" version is available with TRIAC output. When the relay has to stand high currents for a loong period, it is necessary to grant a proper dissipation and an adequate electrical connection between relay terminals and the load. Use the rele with an opportune heatsink (see section accessories). Varistors, fuses, thermostats and fans are available as fittings.

Features:

Alternating current solid state relay
Zero crossing switching
Copper/ semiconductor coupling technology
10.15.20.25.40.50.60.90. and 120 Arms nominal current
Non- repetitive voltage: up to 1200Vp
Nominal Voltage: up to 530 VCArms
Input control range: 5...32Vcc
4000Vrmas optoisolation (input-output)
Green LED, drive input signal indicator
MOV (varistors)

Inputs:
Control signal in Vdc	6...32 Vdc
Control signal in Vac	x
Outputs:
Rated load current
5A
10A
15A	x
20A
25A	x
40A	x
50A	x
60A	x
75A	x
90A	x
120A	x
Rated voltage
230Vac	x
400Vac
480Vac	x
600Vac
Mounting, Protections
Panel Mounting (2 holes standard center distance 47.5mm)	x
IP 20 protection with removable front panel	x
Internal overvoltage protection	x
Diagnostics, Alarm
"ON" LED signal	x
Diagnostics for partial and total load interrupt (HB) with internal CT, LED
Diagnostics for overtemperature with LED and alarm output
