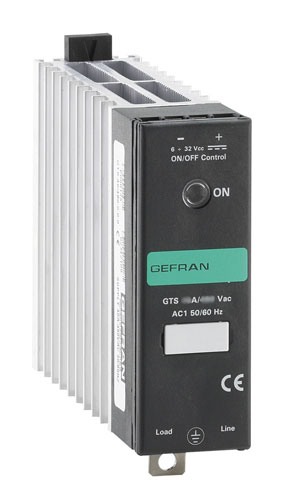

Gefran GTS: SSR, logic input, with heatsink
Stock Code:
SKU: product options
GTS Solidstate relays complete with heatsinks
All models are designed to guarantee operation at rated currents, with continuous driving of power at 40ºC working temperature.
Notes:
Trigger voltage: 5-32VDC
The compact GTS series of SSRs with heatsink are ideally suited for control panels where fast, wear-and-tear free switching, ease of mounting and slim construction are required. GTS consist of a DIN-rail mounting heatsink and a replaceable solid state relay (GS).
For less critical operating conditions, you can use the products beyond rated currents (using the dissipation curves as references). Various accessories are available, such as the attachment for panel fasting, fuses and fuse holders.
Features:
- Input control from logic signal
- Switching at voltage zero crossing
- Versions with TRIAC and with double SCR in antiparallel
- LED power in ondicator
- MOV protections (varistors)
- Fastening to DIN bar (standard); fastening to panel (optional)
| Inputs: | |
| Control signal in Vdc | 6...32 Vdc |
| Outputs: | |
| Rated load current | |
| 5A | |
| 10A | |
| 15A | x |
| 20A | |
| 25A | x |
| 40A | x |
| 50A | x |
| 60A | x |
| 75A | x |
| 90A | x |
| 120A | x (with 115Vac or 230Vac fan) |
| Rated voltage | |
| 230Vac | x |
| 400Vac | |
| 480Vac | x |
| 600Vac | |
| Mounting, Protections | |
| Mounting on standard base | |
| Mounting on DIN rail (included) | x |
| Panel mounting (with accessories) | x |
| IP 20 protection with removable front panel | x |
| Internal overvoltage protection | x |
| Diagnostics, Alarm | |
| "ON" LED signal | x |
| Diagnostics for partial and total load interrupt (HB) with internal CT, LED | |
| Diagnostics for overtemperature with LED | |
| Diagnostics for overtemperature with LED and alarm output |
