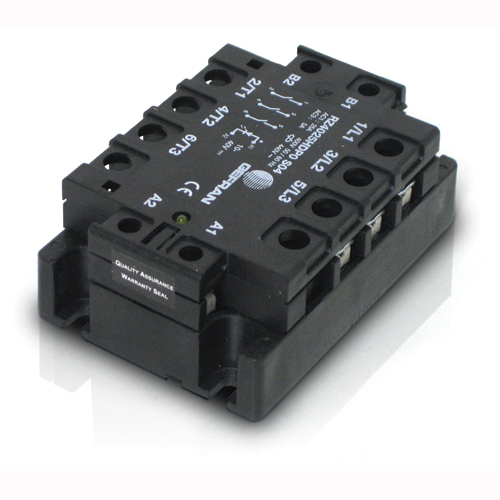

Solid State Relay, three phase

Stock Code:

SKU: UMA-S3-425D025G

trigger voltage: 10--40VDC
load rating: 25A, 400Vac (16 kWatt max.), three phase

Enquire
Description
Downloads
Accessories
Related Products
Tags

Solid state switching devices are used in most modern automation systems to switch electrical loads.

They offer high durability where a high number of switching operations or a fast switching speed is required.

Further benefits are resistance to mechanical shock or vibration, moisture and dust as well as silent operation, maintenance free service and reduction of electromagnetic noise.

Switching is initiated by applying a low DC signal (typically 4-32VDC, 4mA) to the trigger input, placing less demand on control outputs and enhancing safety.

SSRs are normally “zero crossover switching”, only closing or opening when the AC power sine wave crosses zero. This eliminates electromagnetic interference and harmonics on the power supply.

Solid State Relays: block type (zero crossing)
