Thermon HT: Hopper Heating Panel, up to 427°C
Stock Code:
SKU: product options
  • A rugged, self-contained high performance heater
  • Reliable operation on surfaces prone to vibration.
  • Heat outputs up to 4650 Watts per square metre - depending on the application.
  • Even heat distribution over panel surface
  • Engineered to match the application
  • Parallel circuit design, rugged construction
  • Supply Voltages: 120 - 600 VAC
  • Maximum Maintenance Temperature: 423°C
  • Certifications/ Approval:
    Thermon HP Hopper Heaters: Certifications


Product types shown are partial descriptions. Delivered product will have prefix and suffix designations to identify complete design parameters; contact us for design assistance.

Applications for Thermon HP Hopper Heating Modules

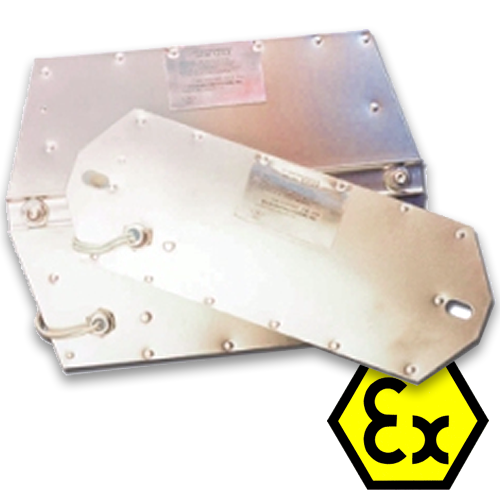

The HT hopper heating module is a rugged, self-contained high performance heater designed for reliable operation on surfaces prone to vibration.

Designed to provide heat out-puts up to 4650 Watts per square metre depending on the application, the HT module distributes heat evenly over the entire panel surface. To ensure optimal performance, each system is engineered by Thermon based on the heating requirements of the application.

A parallel circuit design, based on a stamped high temperature INCONEL® heating element, provides the HT heating module with multiple flow paths for electrical current to pass. This design eliminates the burnout potential common with series wire-based designs. Protection of the heating element from vibration is achieved with a cushion layer of insulation that also directs the flow of heat from the module to the surface being heated.

The rugged construction of the module includes a tough .9 mm thick aluminized steel shell that provides mechanical protection during handling, installation and operation. Weld splatter, rust or oil will not affect the integrity or performance of the heater. The low profile design of the panel permits rapid, trouble-free installation.

HT hopper heating modules are approved for use in ordinary (nonclassified) and hazardous (classified) areas per U.S. standards.

CE certificate
Factory Mutual ResearchFactory Mutual Research
Ordinary and Hazardous (Classified) Locations

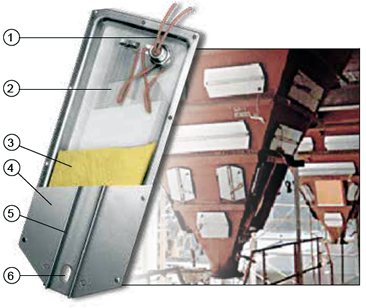

Thermon HP: Hopper Heaters, product specifications

  1. Fluoropolymer insulated high temperature 1.3 mm² lead wires (with stress relief at connection)
  2. Parallel circuit high temperature alloy heating element
  3. Temperature-rated insulation (directs energy towards surface to be heated)
  4. Aluminized steel protective enclosure and cover (.9 mm thick)
  5. Aluminized steel reinforced attachment channel (1.9 mm thick)
  6. 6.3 mm Hole cut-outs for optional earth connection


  • Maximum Watt density: 4650 W/m²
  • Supply voltages: 120-600 Vac
  • Maximum maintenance temperature: 427°C
  • Maximum continuous exposure temperature
    Power-off: 538°C
  • Minimum installation temperature: -40°C


¹ Watt density and operating voltage are based on application-specific availability and requirements.

Circuit Breaker Sizing and Type

Multiple modules can be energised from the same circuit breaker based on operating voltage and current draw. The current draw, breaker sizing and earth-fault protection should be based on applicable local codes.
