Gefran PC: Rectilinear Transducer, selfloading
Stock Code:
SKU: product options
resistive track linear transducer
Gefran PC selfloading transducers are based on a cursor sliding along a resistive strip.
Self-alligning linkage and ball-joints on either side permit angular displacement.
Custom Product Options
Pick your custom options from the list below and click "Add To List".

  • The measuring principle is that of a potentiometer.
  • Mechanical fixing and selfaligning linkage using 2 ball-joints
  • Maximum angular movement up to ± 30°
  • Independent linearity ± 0.05%
  • Repetibility 0.01 mm
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed up to 5 m/s
  • Working temperature: -30...+100°C

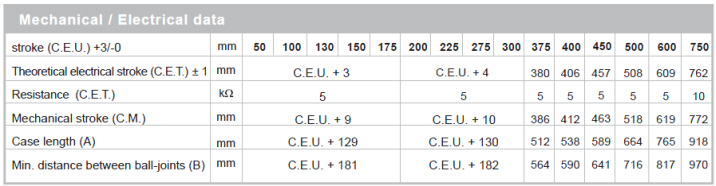

Mechanical/ Electrical Datea: Gefran PC rectilinear transducer

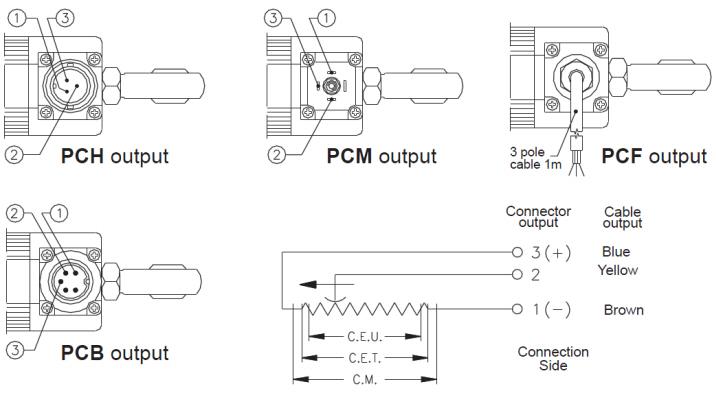

Electrical Connections

Gefran PC resistive track linear transducer
