Gefran PK: Linear Transducer, resistive track with slider
Stock Code:
SKU: product options
Gefran PK rodless dispacement transducers are fitted with a mechanical linkage using a joint which takes up play in the alignment.
This series of rectilinear transducers is cost efficient, based on a cursor sliding along a resistive strip.
The measuring principle is that of a potentiometer.
Custom Product Options
Pick your custom options from the list below and click "Add To List".

  • The measuring principle is that of a potentiometer.
  • Mechanical linkage using joint with take up of play, M5 thread
  • Independent linearity up to ± 0.05%
  • Repetibility 0.01 mm
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed 10 m/s
  • Working temperature: -30...+100°C

Displacement speed

4m/s PK L - 10m/s PK H

Accelaration200m/s2 max (20g)
Working temperature-30...+100°C
Tolerance on resistance±20%
Max. cursor current10mA
Max. applicable voltage60V
Electrical isolation>100M? at 500V=, 1bar, 2s

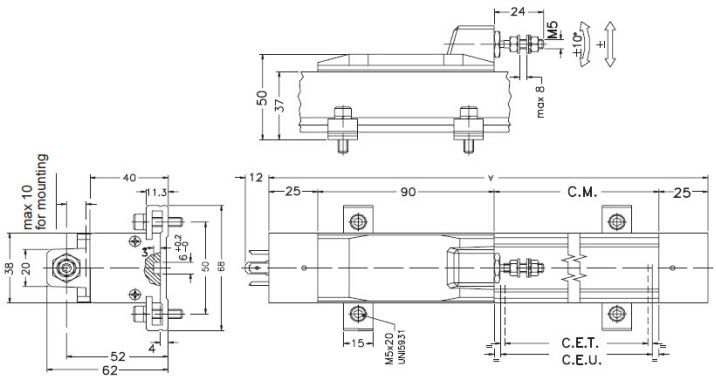

Gefran PK resistive track linear transducer with slider

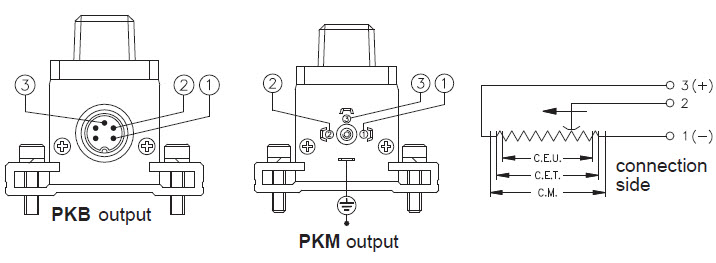

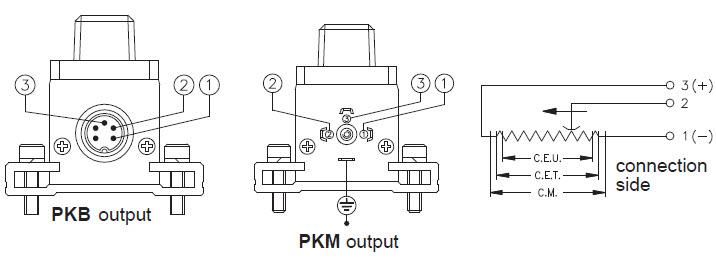

Electrical Connections

Click here for more technical informations
