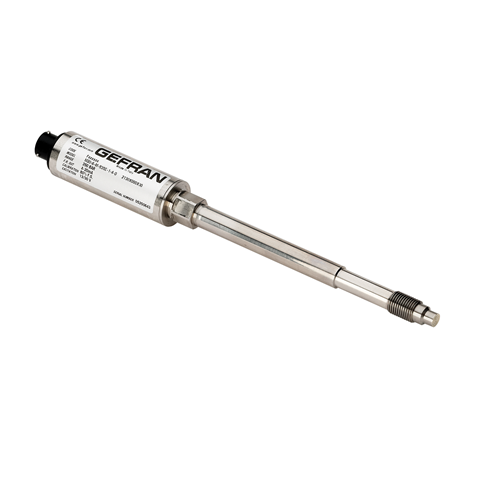

Gefran K3: Melt Pressure Transmitter, NaK
Gefran K3: NaK Melt Pressure Transducer, mV/V Output
Stock Code:
SKU: product options

K3 NaK filled Melt Pressure Transmitters

  • Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
  • Accuracy < ±0.25% FSO (H); < ±0.5% FSO (M)
  • Hydraulic transmission system for pressure signal guarantees stability at working temperature (NaK). Liquid conforming to RoHS Directive. NaK is defined as a safe substance (GRAS)
  • Quantity of NaK contained per model: K30 series (30mm3) (0.00183 in3), K31-K32-K33 series (40mm3) (0.00244 in3)
  • 1/2-20UNF, M18x1.5 standard threads; other types available on request
  • Inconel 718 diaphragm with GTP coating for temperatures up to 538°C (1000°F)
  • 15-5 PH diaphragm with GTP coating for temperatures up to 400°C (750°F)
  • Hastelloy C276 diaphragm for temperatures up to 300°C (570°F)
  • 17-7 PH corrugated diaphragm with GTP coating for ranges below 100bar-1500psi
Custom Product Options
Pick your custom options from the list below and click "Add To List".
*M18x1.5 (not available with membrane in Inconel)
*available on request
* max temperature

The K3 Series are pressure sensors  for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers.

The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.

A near incompressible sodium-potassium (i.e. NaK) mixture is used for pressure transmission. NaK is FDA recognized safe (GRAS) substance.

  • As for FDA approval,  K series is suitable for Mercury free , food and medical application
  • Processing  special polymers, technopolymers (538°C /1000°F)
