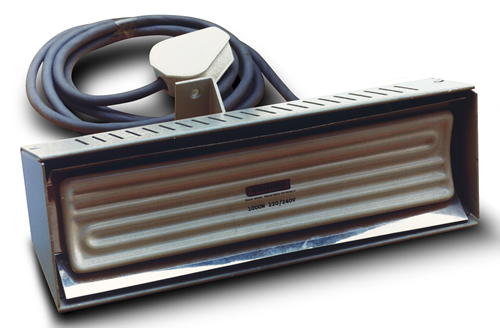

Ceramic IR comfort heaters
Stock Code:
SKU: UHI-LYIRW-E1000

Ceramic IR heaters offer exceptional durability. Emitting in the long-wave spectrum they hardly display any visible glow, which is advantageous when light sources are unwanted.

Benefits:

  • Short warm up period: IR transfers 3-5 times quicker than hot air processes and requires only a very short warm-up period
  • Efficiency: The angle of the beam at 70°C allows targeting of heat energy where it is required, yielding approximately 96% efficient energy conversion
  • No heat losses: Because IR energy penetrates the air similar to visible light, it cannot be blown away by wind or rise to the roof through convection
  • Environmentally-friendly: IR heaters emit no vapors thereby, alleviating an environment for germ growth. Unlike gas and oil heaters, IR heaters do not deprive the air of oxygen and are safe to use indoors
  • Unobtrusive: IR heaters are small and inconspicuous. When mounted high they do not pose an obstruction, nor do they make any noise.

Warning:
Do not hang clothes directly over the heater. Synthetic material will soften/ melt if positioned too close to the heater. Maintain a safe distance of 1 metre. Do not replace the cable with conventional PVC cable.

Infrared zone heaters are ideally suited for fast and efficient comfort heating where heat is required for only short periods of time or in large open spaces where convectiopn heating (air heating) is uneconomical.

Typical applications:

Entrance halls, reception desks, warehouses, factories, bathrooms, entertainment areas, open-air restaurants, dining rooms, studios, youth clubs, etc.

Installation guide

  1. Short wave IR installation guideDetermine the overall heating requirements:
    B x D x Heating Index = Total kW required
               1 000

    B = length to be heated in metres, D=width to be heated in metres, Heat Index = intensity in watts per m², determined from Heating Index table

    Heating Index table
    130 - 170: Shops, meeting halls, recreation rooms, clubs, pubs
    150 - 170: Offices, canteens, waiting rooms, entrance halls
    150 - 200: Workshops, factories, garages, public buildings, restaurants
    180 - 220: Warehouse, loading bays, large workshops and factories
    220 - 240: Churches

  2. Determine the number of comfort heaters by dividing the kW rating of the units available into the totalkW loading

  3. A 10-15% overlap is recommended to give even coverage

Type

Ceramic Infrared Heater

Power (Watt)1000
Volts (V)230
Height: A (m)2.5

Area coverage: BxC (m)

2.5 x 2.5
