Thermocouples: International Colour Codes

Unfortunately there is no international standard for color coding of thermocouples. Most industrialized countries have their own color coding system.

A typical example of this is the Japanese and American type J thermocouple which has opposite colour coding of red and white. What can make things worse is that once a sensor cable has been exposed to heat and dirt, the color can sometimes not be identified clearly. This can make the job of a maintenance technician that much more difficult.

Here is an overview of the most common colour-code for your guidance:

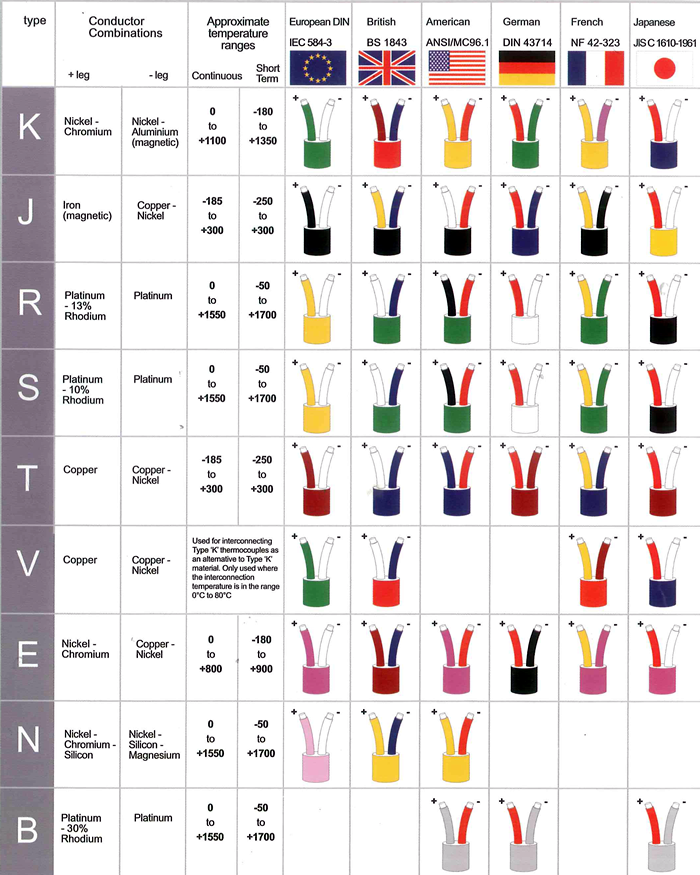

Thermocouple Colour Chart - International Colouring Codes type K, J... T/C
