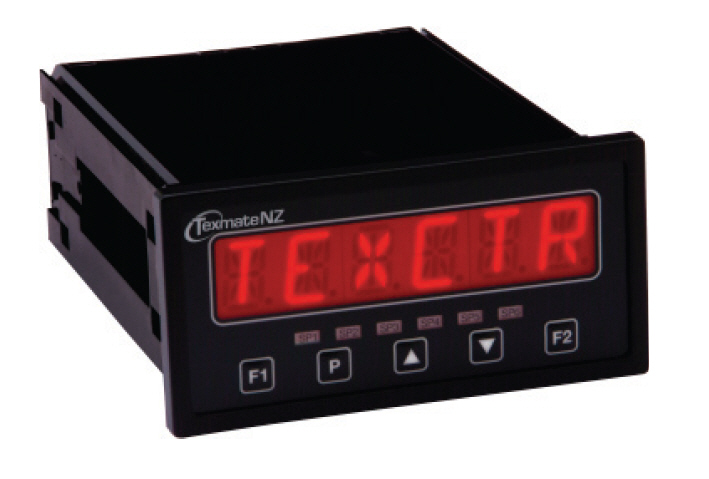

Define Instruments TEX-CTR10: Counter, Rate indicator
Stock Code:
SKU: product options

This counter is ideal for indicating totalisation and monitoring rates.

  • 5 buttons
  • 13mm LED display, 6 digits
  • IP65 dust and splash-proof
  • Panel mount case - (H x W x D)
    48 x 96 x 119.5mm
Custom Product Options
Pick your custom options from the list below and click "Add To List".

The TEX - CTR10 indicator is the ideal solution for a variety of counting and rate application requirements.

This meter has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-by-step through the setup process.

The front panel includes a 6-digit LED isplay and five front-panel buttons, for simple operator interface. One of the five buttons is user-programmable, so you can customise it as a shortcut to your most frequently used feature.

The TEX - CTR10 is available as an indicator. For more sophisticated applications requiring outputs and/or batching functionality, we recommend the PRO - CTR series.

Input Signal 0-24V DC, 0-30V AC
Sensor types NPN, PNP, TTL, namur, tacho, pushbutton
Noise filtering 0.2, 2, 20kHz or Off
Excitation 24V DC (50mA max)
Input frequency 100kHz max
Pulse width Minimum pulse width must exceed 5?s
Sampling rate 10msec
Input frequency 10kHz max (100kHz in high-speed mode)
Pulse width Minimum pulse width must exceed 5?s
Sampling rate 100msec
Resolution 0.01Hz (1Hz in highspeed mode)
Accuracy 0.005%
Temp drift Typically 2ppm/°C
