Pressure Transmitters & Transducers

pressure transducers


Industrial pressure transducers and transmitters by Gefran measure fluid, liquid or gas pressure in all industrial applications.

Thanks to highly stable electronic components,pressure transmitters can be also used in applications requiring long distance signal transmission or in smart control systems.

View products! Browse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.
  • 4-20mA output
  • G1/4 male thread
  • 0.5% accuracy
  • 1ms response time
  • 4-pole connection

TheTK series of pressure transmitters are suited mainly to measure pressure in oil, air and hydraulic circuits.

They are popularly used in general process measurement applications as well as for compressors, presses and mobile hydraulics.


  • 4-20mA output
  • M18x1.5 thread
  • 0.3%-0.6% accuracy
  • 8ms response time
  • 6-pole connection

TPF pressure transmitters with a flush measurement diaphragm are particularly designed to check pressure of high viscosity fluids.

They are also used in the food industry,where substances must not stagnate in cavities.

Technical Data

Model Gefran TK Gefran TPF
Operating temperature -40….+105°C -30….+85°C
Compensated temperature range -10….+85°C 0….+70°C
Overpressure 2 x full scale 3 x full scale
Burst test 4 x full scale 4 x full scale
Materials in contact with fluid Inox 17-4 PH / AISI430F nox 17-4 PH
Power supply 0…30VDC
Output signal 4…20mA
Maximum current absorbtion 32mA
Protection level IP65

Gefran TK Pressure Transmitter
Technical Drawing:
Gefran TK Pressure Transmitter

Gefran TK Pressure Transmitter

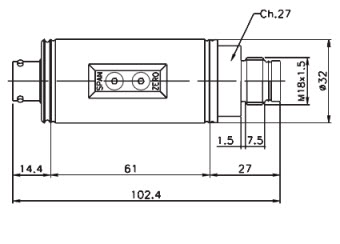

Technical Drawing:
Gefran TPF Pressure Transmitter
