Elstein IOT: Screw-type Infrared Radiators

More Information

Elstein IOT Infrared Emitters

Ceramic IR, infrared heaters

Ceramic Infrared Emitters, screw-type IOT screw emitters can be screwed in like standard light bulbs.

These infrared heaters are popular for use in terrariums, heating of pets and livestock, breeding, medical and catering technology.

Elstein IOT: Screw Infrared EmittersBrowse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.

Features of Elstein IOT: Screw Infrared Emitters

Elstein IOT/75 and IOT/90 heaters are ceramic infrared dark heaters with E27 screw caps. The standardised E27 thread allows easy and safe installation, as the heaters can be screwed in like bulbs into porcelain or metal sockets with porcelain insert.

Due to their simple connection, IOT/75 and IOT/90 infrared heaters are suitable both for individual operation and for configuring groups of heaters. They have diverse applications, in particular they range over terrariums/pets and livestock, breeding, medical and catering technology.

  Elstein IOT/75: Infrared Emitter, E27 Elstein IOT/90: Infrared Emitter, E27
Power at 230V ac 60W & 100W 150W & 250W
Weight 84g 140g
Surface Rating 8.6 | 14.4 | 15.0 | 25.0 kW/m²
Typical operating temperature 290 | 380 | 420 | 490 °C
Maximum permissible temperature 530°C
Wavelength range 3 - 10 μm
Standard design specifications Operating voltage 230 V
Ceramic hollow casting
E27 Edison screw cap
Custom variations Special wattages
Special voltages

Elstein IOT: Screw Infrared Emitters: Dimensions

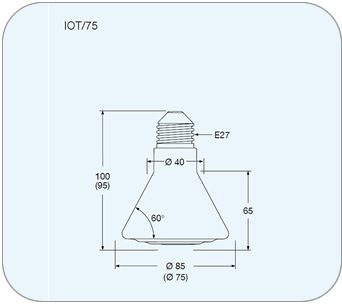

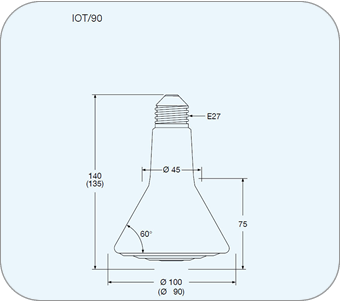

Elstein IOT75 Dimensions Elstein IOT90 - Dimensions

Temperature and Radiant Power

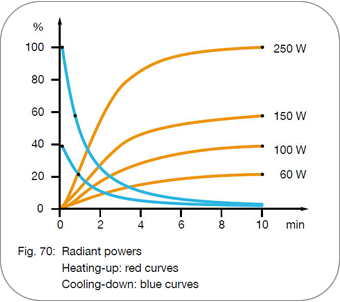

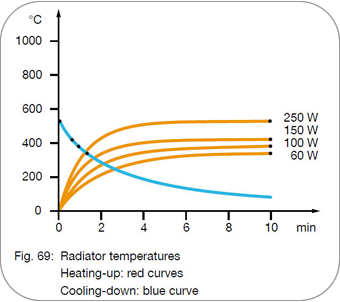

Radiant Power - Elstein IOT Elstein IOT - Radiant Temperature

The power can be adjusted using proprietary power controllers or dimmers. Porcelain sockets or metal sockets with porcelain inserts are to be used both for electrical and mechanical connection of Elstein IOT/75 and IOT/90 radiators.

The sockets must not contain any plastic components. The national safety regulations must be complied with for the respective application, for example,

  • IEC or EN standard 60519-1,

  • Safety in electrical heating installations and

  • VDE 0700 Part 71 or EN 60335-2-71,

  • Regulations for Electrical heaters in animal breeding and keeping of livestock.

Our instructions for mounting, operation and safety must be observed.
