Elstein HTS Ceramic Infrared Heaters

Elstein HTS high temperature radiators are ceramic infrared panel radiators, which can be used for operating temperatures up to 860 °C and surface ratings up to 64 kW/m².

Elstein HTS high temperature radiators are available in four designs and cover the power range from 60 W to 1000 W.

HTS IR Panel RadiatorsBrowse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.

Features of HTS IR Panel Radiators

HTS series radiators are produced using a hollowcasting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated. Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.

Compared with IR radiators, which are produced using full-poured casting processes, HTS radiators have a considerably reduced heating-up time and, depending on the type of application, enable energy savings of up to 25 %.

Our standard range consists of:

  Elstein HTS/1:
Ceramic Infrared Panel Radiator
Elstein HTS/2:
Ceramic Infrared Panel Radiator
Dimensions 250mm x 62.5mm 125mm x 62.5mm
Power at 230V ac 250 - 1000W 125 - 500W
Weight 220g 125g
Surface Rating 16.0 | 25.6 | 38.4 | 51.2 | 64.0 kW/m²
Typical operating temperature 450 | 570 | 700 | 810 | 860 °C
Maximum permissible temperature 900 °C
Wavelength range 2 - 10 μm
Standard design specifications Operating voltage 230 V
Ceramic hollow casting
Integrated thermal insulation
Leads 85 mm
Elstein standard socket
Mounting set
Optional Thermocouple Designation T-HTS, T-HTS/1,
T-HTS/2, T-HTS/4
Integrated thermocouple
Type K (NiCr-Ni)
TC leads 100 mm
Custom variations Special wattages
Special voltages
Extended leads
Leads with ring terminals

Temperature Range & Radiant Power Elstein HTS IR Panel Radiators

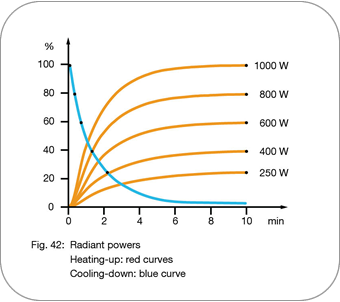

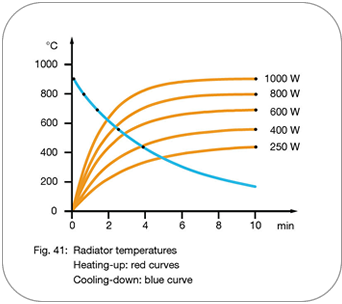

Elstein HTS - Radiant Temperatures Elstein HTS - Radiant Power

Elstein HTS Series IR Panel Radiators: Dimensions

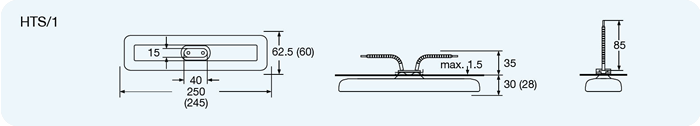

Elstein HTS/1 Technical Drawing

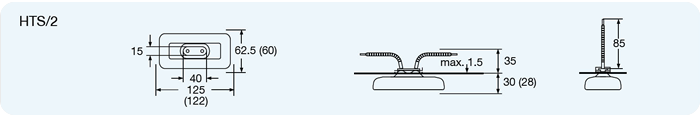

Elstein HTS/2 Technical Drawing

The power can be controlled using thermocouple radiators together with temperature controllers, thyristor switching units and other accessories. IR radiation areas can be assembled using reflectors, construction sets, construction elements, mounting sheets as well as construction panels.

The national safety regulations must be complied with for the respective application, for example, the IEC or
EN standard 60519-1, Safety in electrical heating installations. Our instructions for mounting, operation and safety must be observed.

Typical industrial applications for ceramic infrared heaters

Infrared heat is an excellent non-contact heat source and is thus used in applications involving delicate surfaces, for pre-heating, softening, curing and drying.

Drying paints and curing resins
Thermoforming of boat hulls
Heating of plastic tubes
Heating of bottle bottoms
3D-Heating for lamination
Glass tempering
