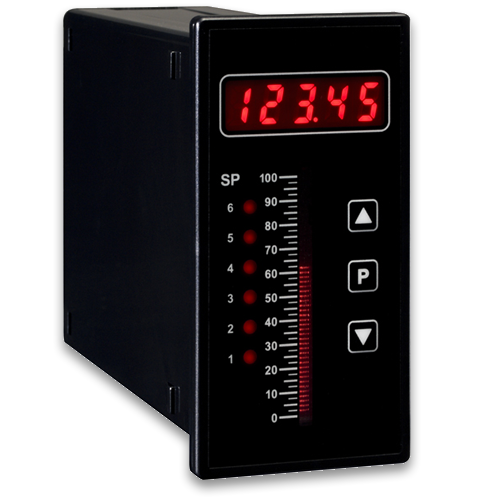

Define Instruments TEX-BAR: Process Controller, bar graph
Stock Code:
SKU: product options
This controller is ideal for a variety of applications where instant, visual indication of the process variable is required.
It is particularly suited to level measurement or rate movement indication.
- 3 buttons
- 8mm LED display, 5 digits
- 0-100% bar graph
- 6 setpoint indicator LED's
- IP65 dust & splash-proof
- Panel mount case 96 x 48 x 119.5mm (H x W x D)
The TEX range covers a wide variety of application requirements and offers a great balance of affordability and functionality.
The key benefit of choosing a TEX controller is the range of advanced display options, including
- additional digits
- setpoint indicators and display rows
- LED bargraphin
- 14-segment display characters for clearer viewing of alphabetic characters.
| Input Signal | Current (0/4-20mA) Voltage (0-2/10V) |
| Excitation | 24V DC (50mA max) |
| Resolution | 16-bit |
| Sampling rate | 10Hz |
| Accuracy | 0.05% |
| Temp drift | Typically 50ppm/°C |
| Linearization | Linearization tables up to 32-point, (program with serial port) |
| Relay outputs | 2 x 5A form A or 4 x 5A form A |
| Optional | |
| Analog output | Isolated 16-bit 4-20 mA or 0-10V output |
| Serial port | Isolated RS232/485 |
